1 BBL Conical Fermenter

Bubbas Barrels 1 BBL fermenter

Total volume is 42 gallons. The fermenter is made from  new 30 gallon 304 Stainless Steel drums that are mated to a conical bottom. The body is secured to the cone with a carbon steel bolt ring. Our welds are passivized using equipment from Walter Surface Technologies. All tanks are pressure tested before shipment.

Standard features include:

• 2 piece construction for easy cleaning.
• Thermometer and thermowell.

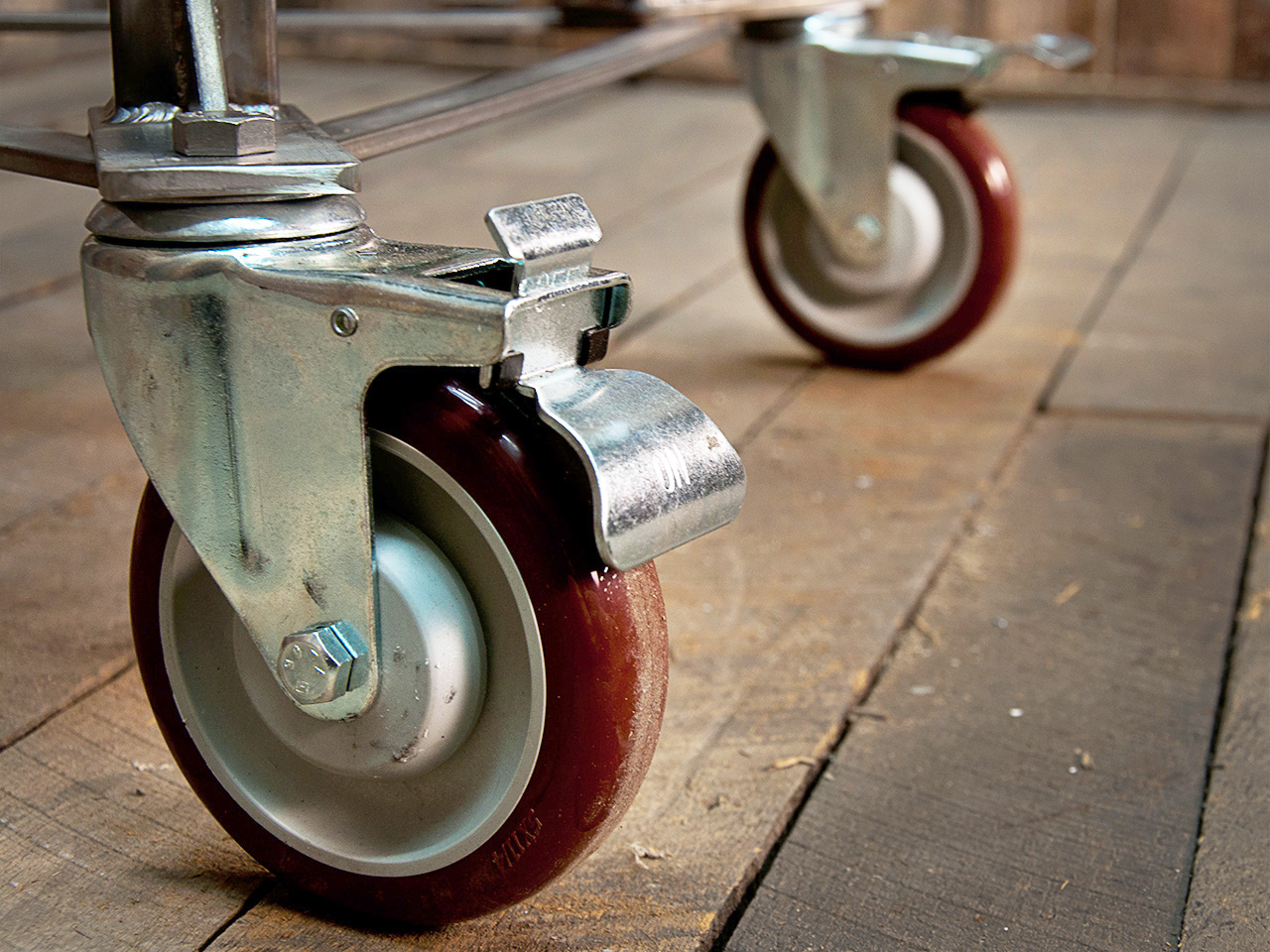

• 5” casters.
• Stainless legs.
• Two 1.5” butterfly valves.

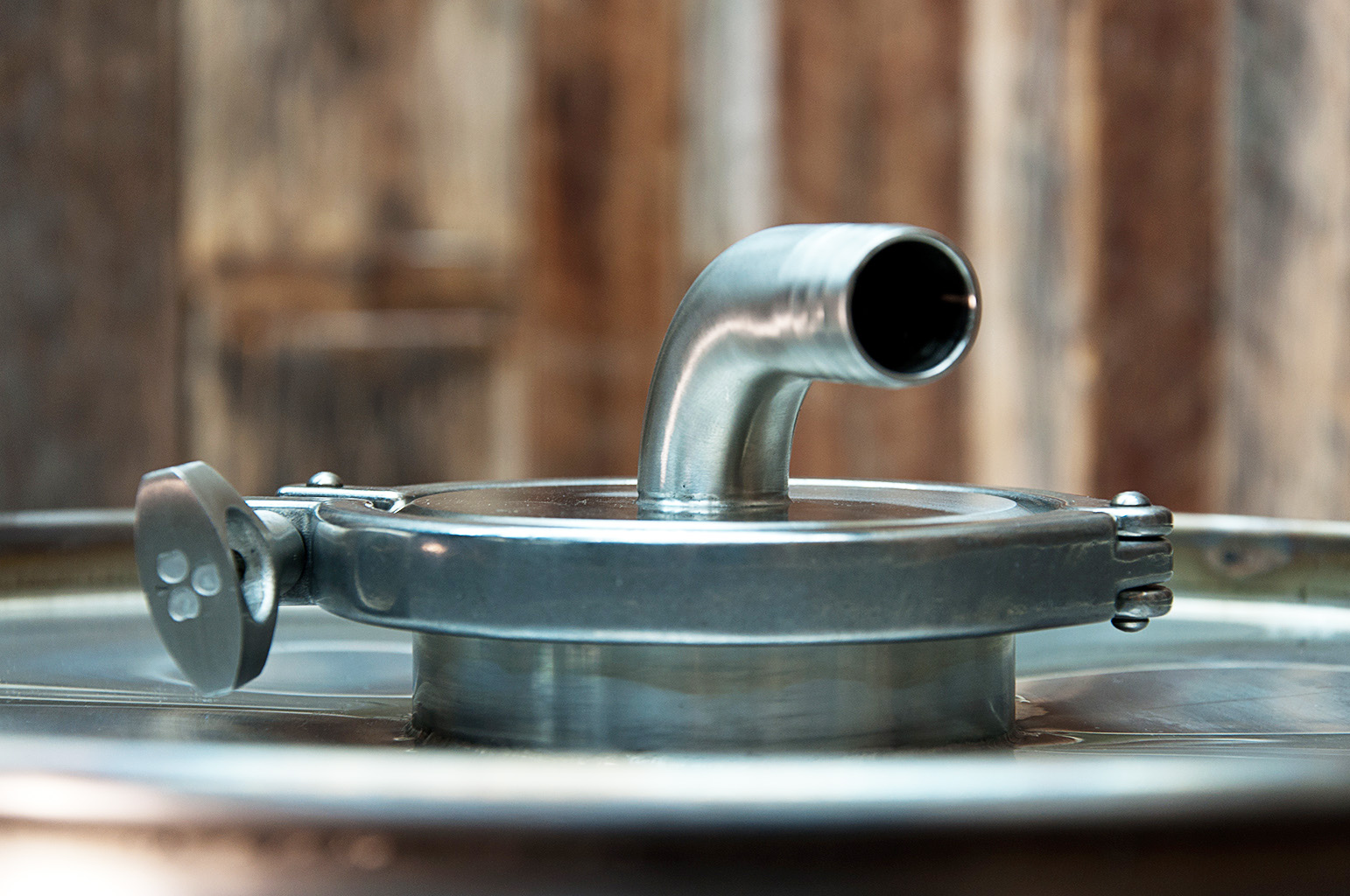

• 1.5” filler port.
• TC x hose barb for blow off.

Options:

Insulation:  ¾” of Armaflex® or Aerocel insulation incased in a neoprene sleeve. Both are closed cell and do not absorb moisture. The sleeve and Armaflex can be removed for cleaning.

Shipping:  Can ship via FedEx

Dimensions: The 1 BBL fermenter Measures 64" tall and 25"  at the base If coiling coils are used, they will add 6" to the height. We can make the legs shorter, but you would need to call to discuss this.

Not designed to be used as a bright tank.

Bolt and Ring Closure Instructions
